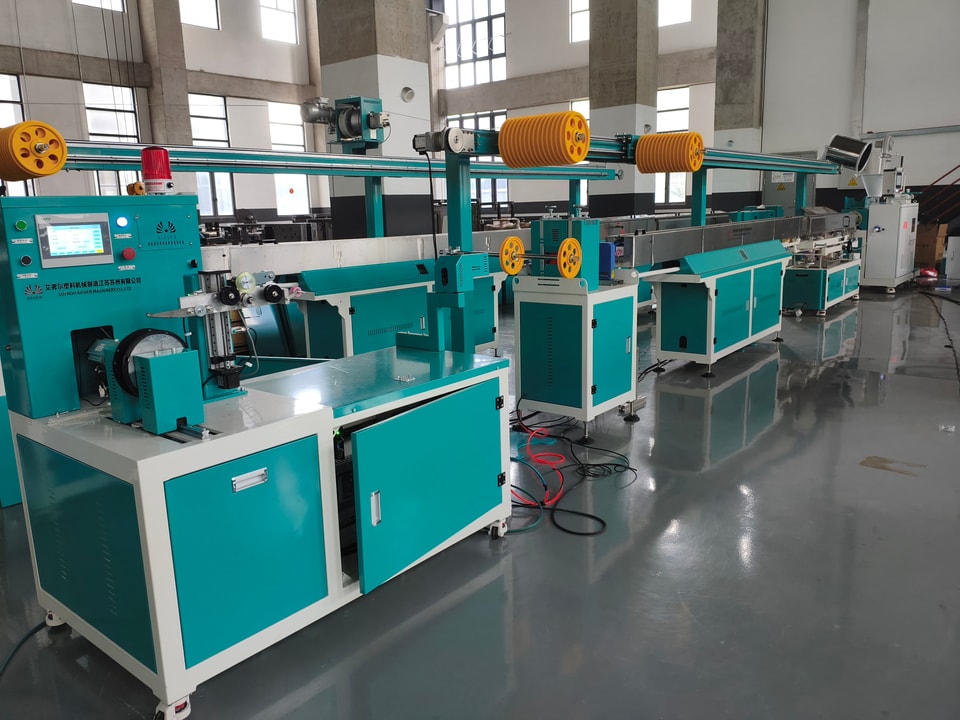

SJ45 single color filament extruding line

3D printing filaments production line refers to an automated production system specifically designed for producing materials required for 3D printing,output is 15-25kg/h. The 3D printing filaments production line is composed of precision single screw extruders, molds, water tank cooling systems, storage systems, traction systems, caliper systems, winding systems, and measurement and control systems, which can achieve functions such as wire extrusion, cooling, diameter measurement, and winding.

The equipment is suitable for processing materials such as PLA, ABS, PETG, PHA, PHB, CF, GF, ASA, PC, TPU, PA, etc.

Variable frequency motor drive, stable and reliable screw speed control

Single station winding and neat wiring,

Siemens touch screen, PLC control, wire diameter closed-loop control, wire diameter accuracy up to ± 0.03mm

High performance servo motor, wide speed range, more stable speed

Humanized structural design, more convenient operation

Traction and caliper form a closed-loop control, which can quickly respond to changes in extrusion speed

Specially manufactured screws and barrels with high processing accuracy and quality assurance
