Review machine configuration, production capabilities and technical details for your filament line.
FILAMENT EXTRUSION SYSTEM

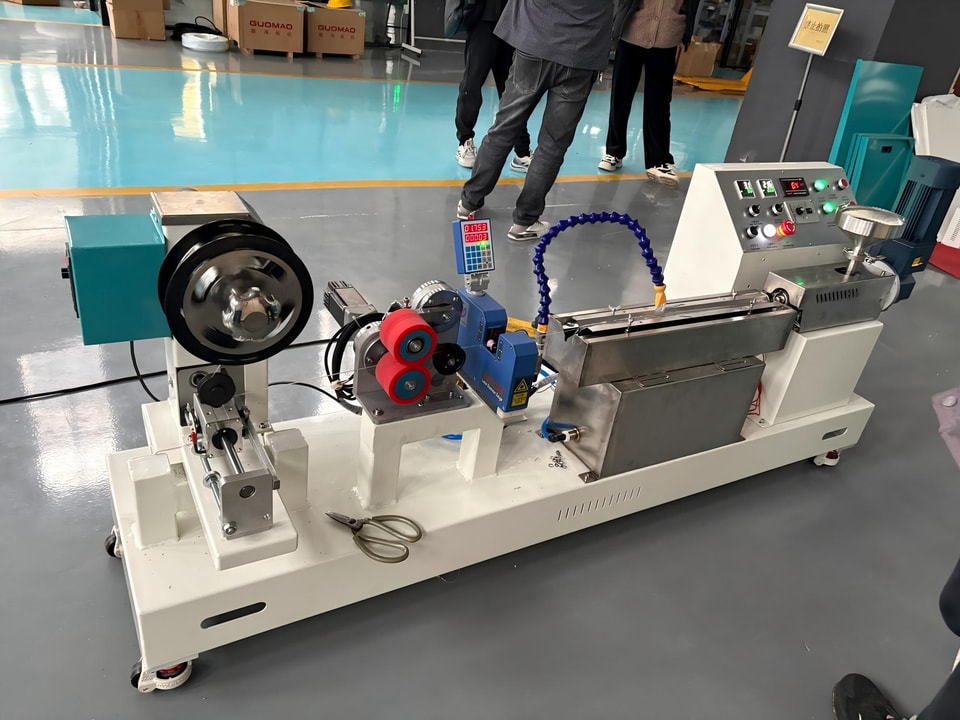

SJ16 single color filament extruding line
- Configuration
- Matched to material and output
- Support
- Installation and process guidance
TECHNICAL INFORMATION
Product details

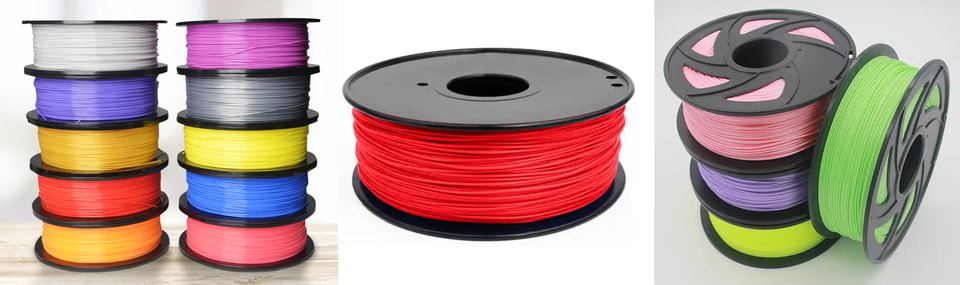

SJ16 3D filament extruder is professionalgrade equipment for manufacturing 3D printing filament. It melts and extrudes thermoplastic raw materials such as PLA into uniform-diameter 3D printing filaments. 05-1kg/h Featuring stable extrusion performance, precise diameter control and easy operation, it is ideal for small-batch production, laboratory research and personal DIY filament making.
No. | Machine name | Qty. |
1 | SJ16 single screw extruder | 1set |
2 | Mold&die(1.75mm) | 1set |
3 | Hot water tank | 1set |
4 | Water cooling tank | 1set |
5 | Mechanical measuring instrument | 1set |
6 | Haul off machine | 1set |
7 | Winding machine | 1set |
Working principle: Plastic pellets are fed into the heating barrel, heated to melting temperature, and continuously extruded through a precision die nozzle. After cooling, diameter monitoring and traction winding, the finished uniform-specification 3D printing filament is obtained.
