SJ35 dual color filament extruding line
SJ35 dual color filament extruding line designed for manufacturing dual color co-extruded 3D filaments.output 10-15kg/h , It integrates multi-channel feeding, precise co-extrusion, closed-loop diameter control, stable cooling, servo traction, and automatic winding to achieve continuous mass production of high-quality dual color filament.

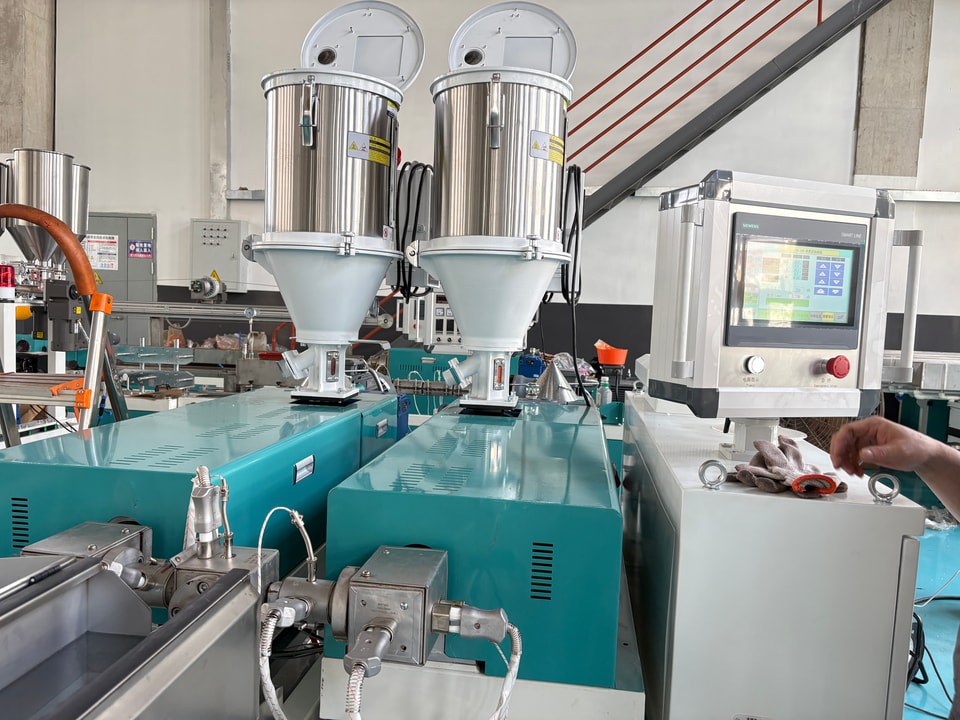

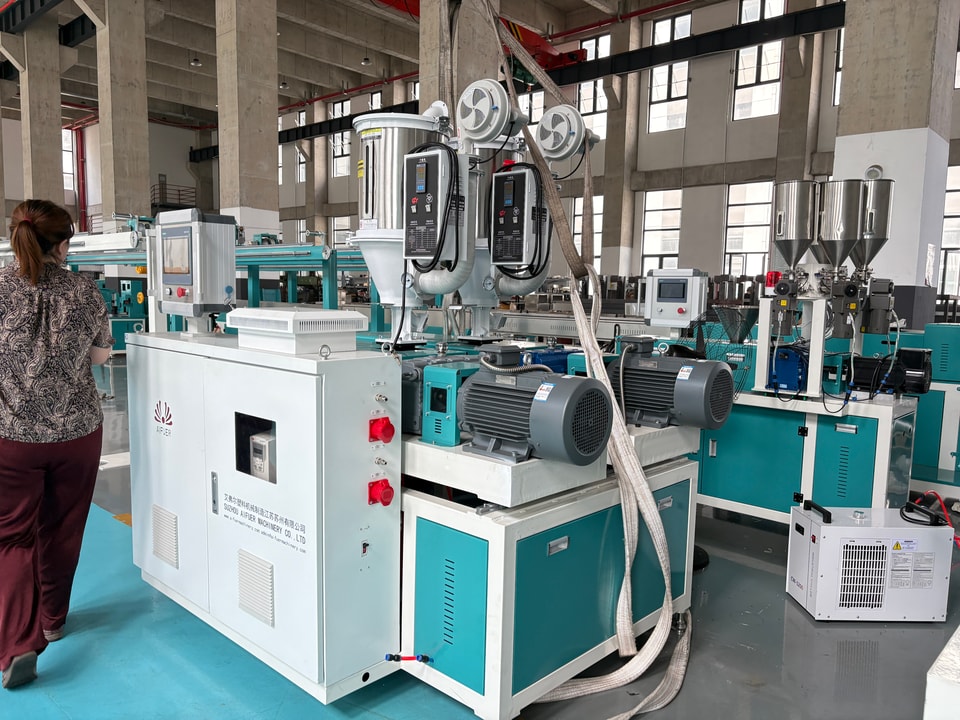

No. | Machine name | Qty. |
1 | Vacuum feeder | 2 |
2 | Dry hopper | 2 |
3 | SJ-35 / 28 Single screw extruder 1 | 1 |
4 | SJ-35 / 28 Single screw extruder 2 | 1 |
6 | Siemens touchscreen controller | 1 |
7 | Dual color co-extrusion mold | 1 |

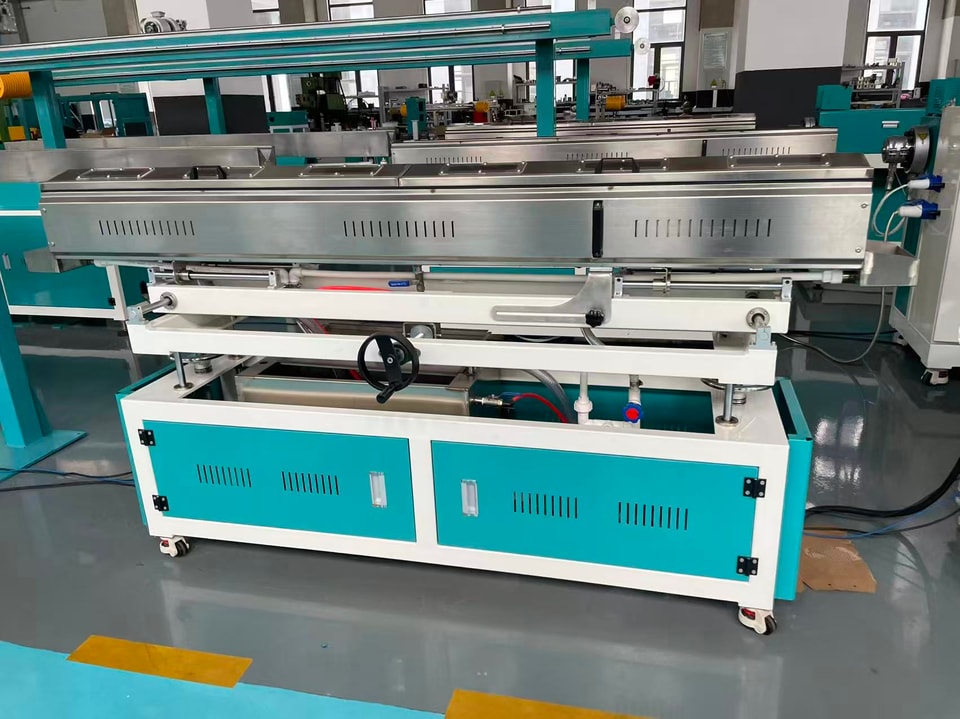

8 | Hot water cooling tank | 1 |
9 | Cold pool | 1 |
10 | Water blowing device | 1 |

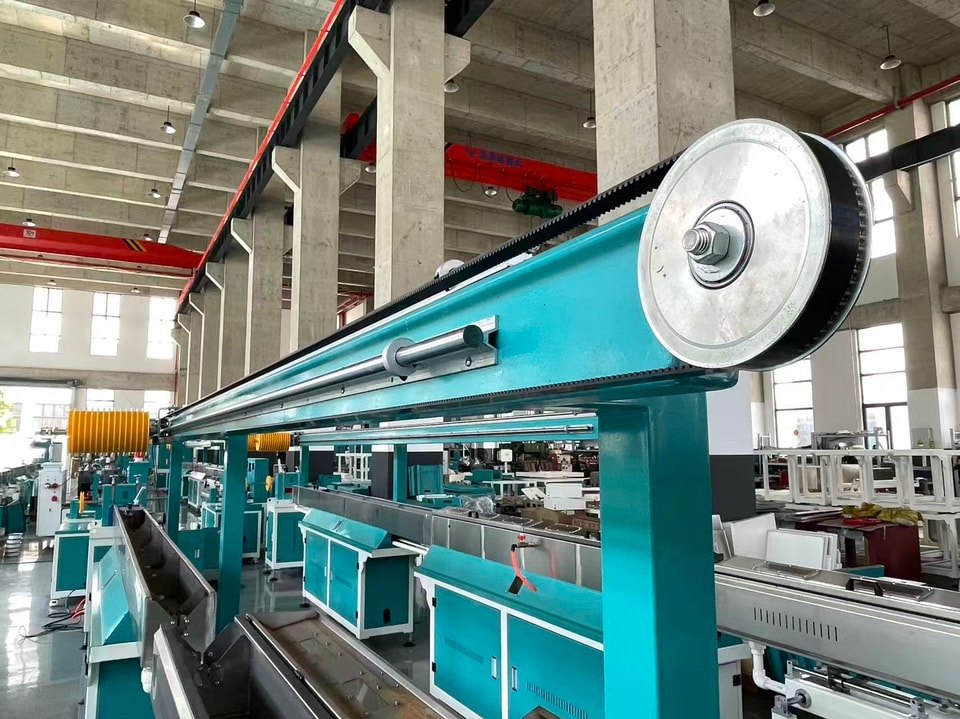

11 | Horizontal storage | 1 |
12 | laser diameter measuring instrument | 1 |
13 | Servo tractor | 1 |
14 | Servo single disk winding machine | 1 |
The line adopts a multi-layer co-extrusion structure with independent temperature and speed control for each extruder, ensuring stable mixing and uniform distribution of two different materials or colors. Equipped with high-precision laser diameter measurement and real-time feedback adjustment, it guarantees extremely accurate diameter tolerance and excellent roundness. The stable cooling system and constant-tension winding system ensure smooth surface, consistent color layering, and reliable printing performance.
